ADL-RO4 Series wall

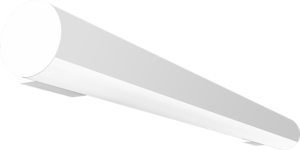

ADL-RO4-D-WM is a smaller wall mount version of our ADL-RO6-D-WM linear series. It may be mounted individually, in perfectly aligned continuous rows, or in any combination of patterns. The smaller size allows for versatility and creativity in modern applications. ADL-RO4-D-WM’s direct distribution and simple architectural lines make it an ideal luminaire for open spaces and energy efficient applications where long duration operation is required.
Spec Sheets
DOWNLOADSE4 PHP.PDF
DOWNLOADJ4D PHP.PDF
DOWNLOADD6V PHP.PDF
IES Files
DOWNLOADSOR.PHP
DOWNLOADCXM.PHP
DOWNLOADYXC.PHP
Fixture Details
Ballast/Driver:
Class 2 AOC driver, 120/277V input, PF > 90{9e3039899d79502081f46b8e4e5bb4c1203e4f797aa4aa736b81ec07a8dfd77b}, THD < 20 @ 120V. 0-10V dimming to 1{9e3039899d79502081f46b8e4e5bb4c1203e4f797aa4aa736b81ec07a8dfd77b}. -20C to +50C operating range. Field replaceable.
Lamp:
LEDLED modules in 80/90 CRI @ 3 SDCM, minimum L70= 50,000 hours. Zhaga complaint, field replaceable.
Optics:
LED optimized white ribbed acrylic (WRA) lens.
