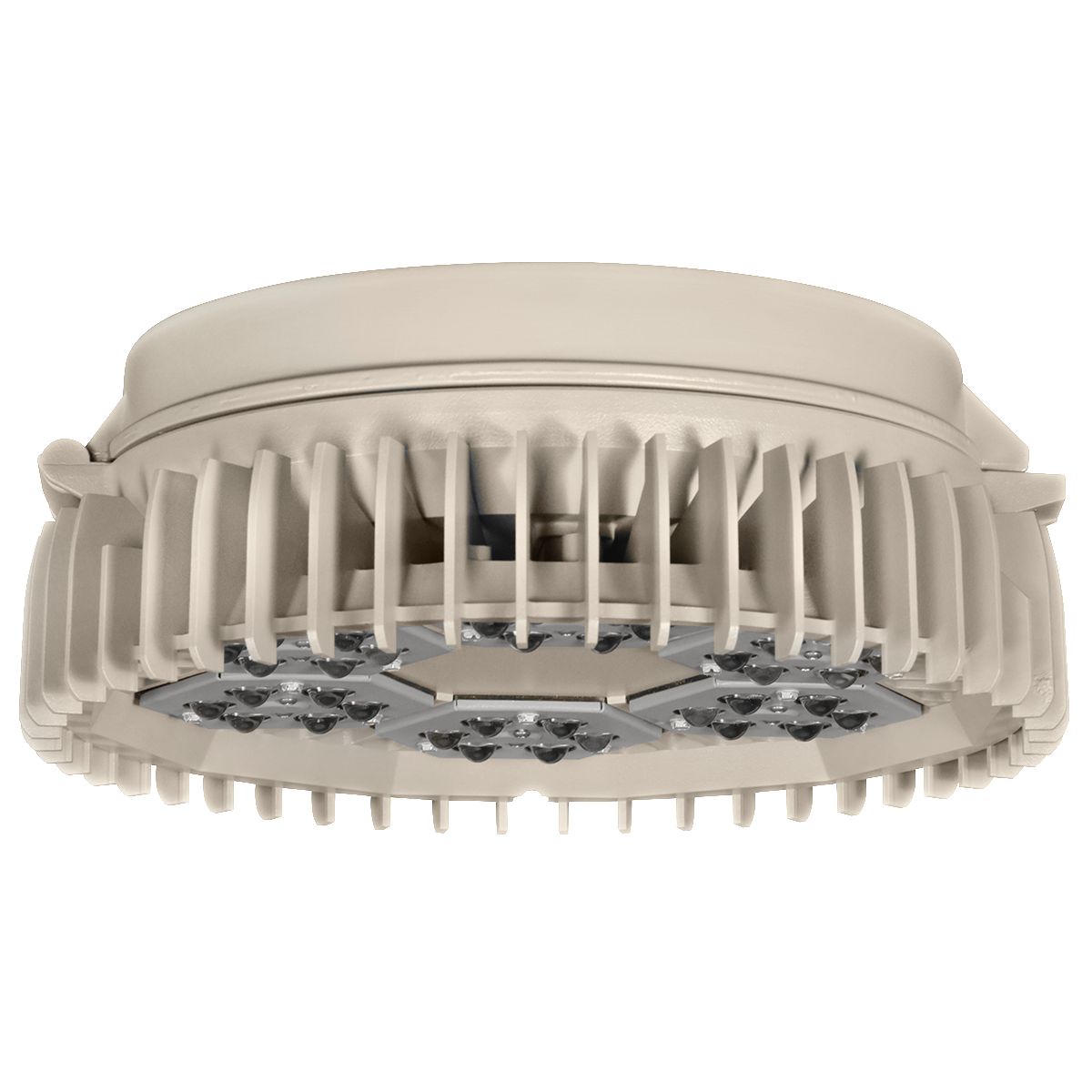

Kemlux III - KSL
The Kemlux III - KSL is an enclosed and gasketed fixture for corrosive and harsh applications such as chemical, petrochemical, marine, power generation, pharmaceutical or food processing plants.
Spec Sheets
COL KSL SPECSHO.PDF
IES Files
KXL 18L X 5K 5MERS.IES
KXL 18L X 5K 5RL0S.IES
KXL 18L X 5K NDAB.IES
KXL 24L X 5K 5MJZ4.IES
KXL 24L X 5K 5RACL.IES
KXL 24L X 5K NYFD.IES
Fixture Details
Color Temperature:
5000
Lumen:
4,300 - 9,004
Mounting:
Ceiling, Pendant, Stanchion
Optics:
Type V, Narrow
Wattage:
43 - 86
Features Benefits:
Custom engineered LED optics providing optimally controlled and evenly distributed light; Three LED count options: 18, 24, 36; High output LEDs delivering up to 105 Lumens per Watt; Three distinct distributions: Type V Square, Type V Rectangle, Narrow; Modular design provides 6 mounting options; Copper-free (less than 0.4 percent) aluminum housing, cover and guard with Lektrocote powder polyester paint finish provides excellent corrosion resistance form most chemicals; Minimum operating temperature of -40 degrees C to 40 degrees C; Separate hinged optical and electrical compartments for optimum component operation and easy installation and maintenance; Vertically finned cast aluminum housing for maximum heat dissipation, ensuring long component life and performance; Five year warranty (Terms and Conditions Apply)
Colors:
White, Gray
