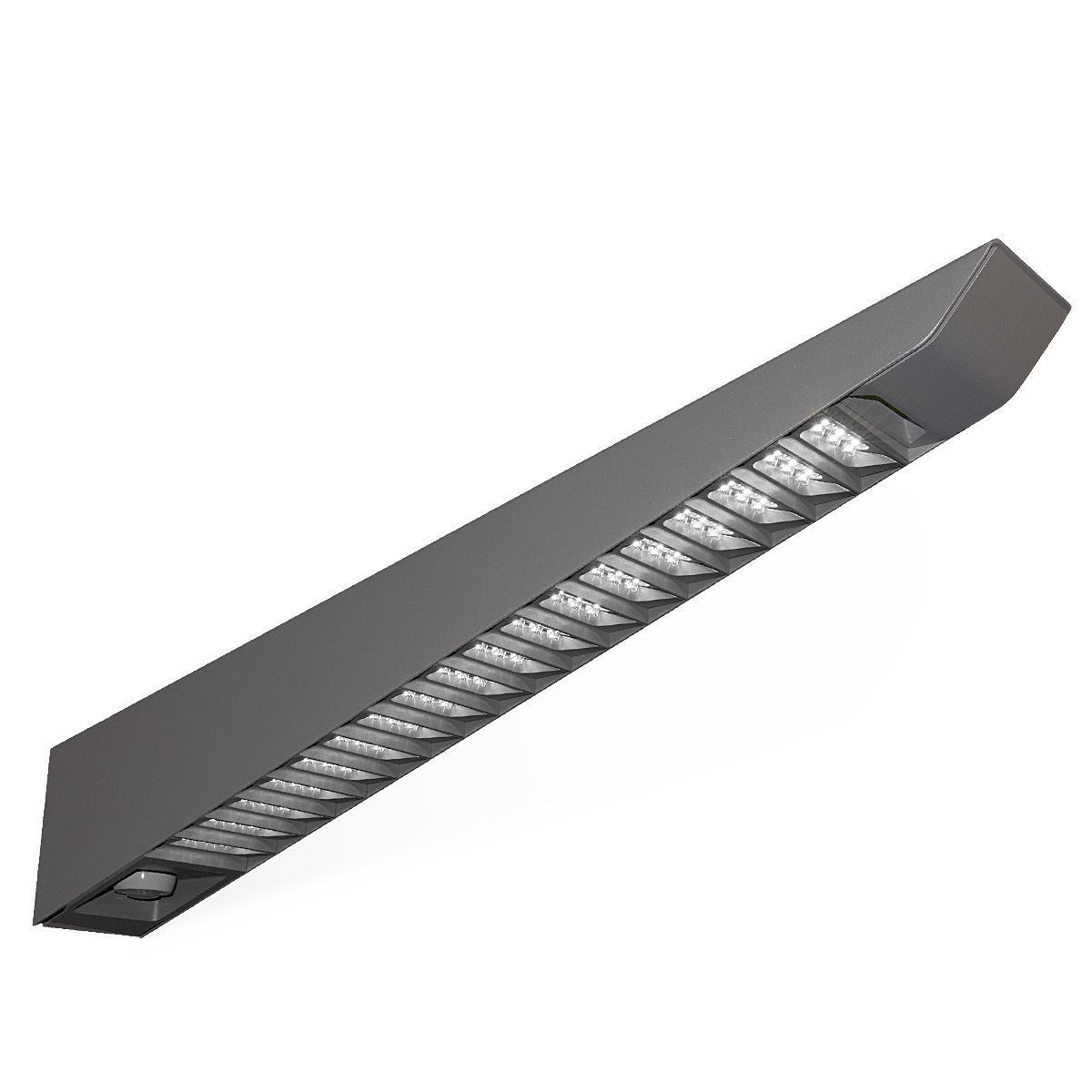

KicK™ Medium
The award winning KicK™ and it's patent pending optical system bring the lighting industry's first angled housing capable of IES distributions with no up-light
Spec Sheets
AAL K5 SPECFXO.PDF
IES Files
K5X T2 12030DVY.IES
K5X T2 12040GAT.IES
K5X T2 12050ERW.IES
K5X T2 18030QCX.IES
K5X T2 18040LCR.IES
K5X T2 18050C7B.IES
Fixture Details
Features Benefits:
0-10V dimming ready; IP66 optical system; wiScape offers up to 1000' wireless communication; Integral sensor is effective up to 40' mounting height
Lumen:
5,001 - 30,000
Color Temperature:
3000, 4000, 5000
Colors:
BLS - Black Gloss Smooth, BLT - Black Matte Textured, DBS - Dark Bronze Gloss Smooth, DBT- Dark Bronze Matte Textured, GTT - Graphite Matte Textured, LG - Light Grey Matte Textured, LGS - Light Grey Gloss Smooth, PSS - Platinum Silver Gloss Smooth, VGT - Verde Green Matte Textured, WHS - White Gloss Smooth, WHT - White Matte Textured, CC Custom Color
Mounting:
Wall, Surface, Arm, Post Top
Optics:
Type II, Type III, Type IV
Wattage:
31 - 150
