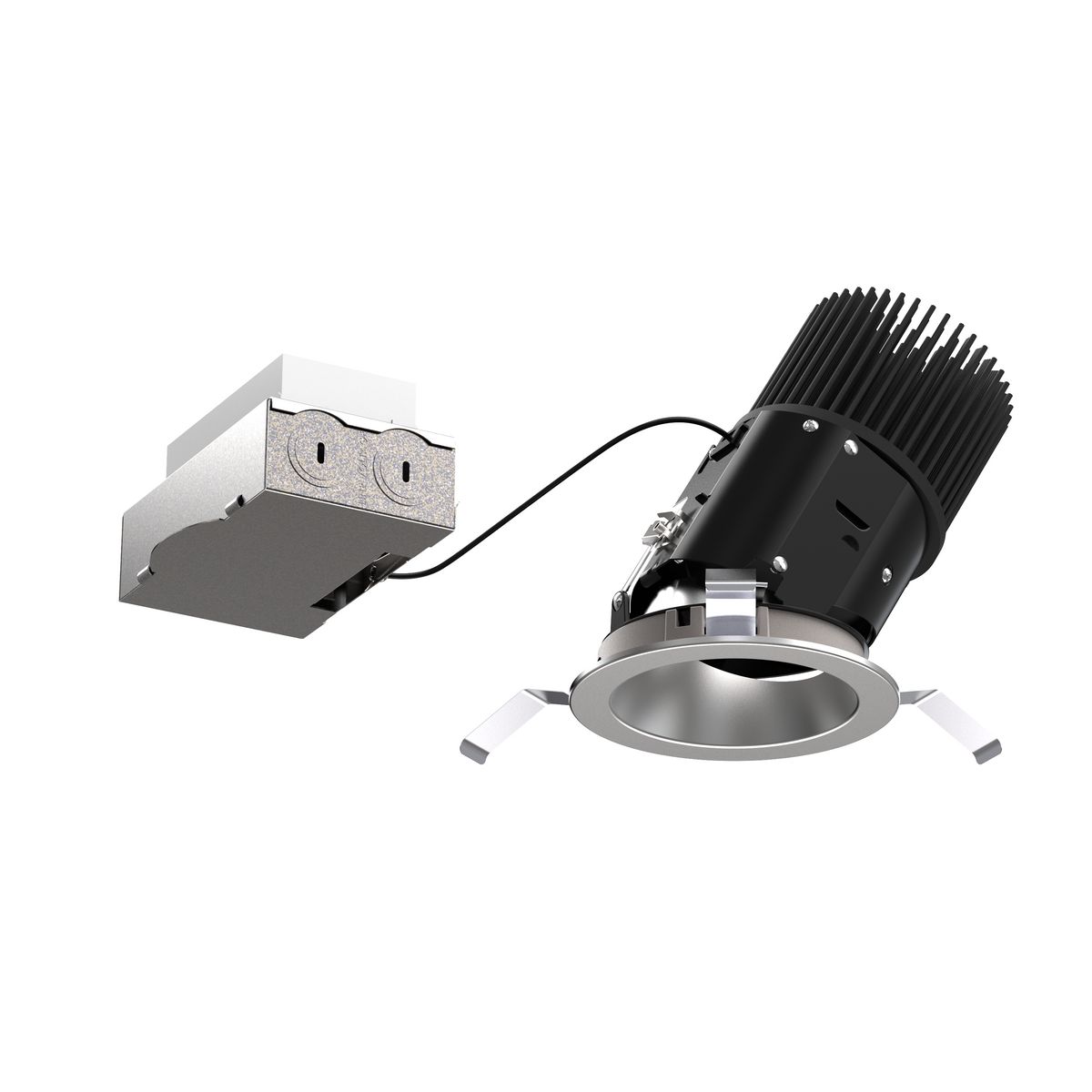

LiteFrame® 2.0 LFR-4RA
LiteFrame® 2.0 family balances the right solutions and performance while making it simple to select and flexible to use.
Spec Sheets
PRE LFR 4RA SPECLZC.PDF
PRE LFR 4RA SPECTRSYNC SPECVTS.PDF
IES Files
LFR 4RA M 10L2230TD9MD DMT LFR 4RA T SJGO.IES
LFR 4RA M 10L2230TD9NR DMT LFR 4RA T SQXS.IES
LFR 4RA M 10L2230TD9WD DMT LFR 4RA T SQHH.IES
LFR 4RA M 10L35K8MD DM1 LFR 4RA T SIA4.IES
Fixture Details
Features Benefits:
4" LED round adjustable accent delivering 1000-6000 lumens; Direct Install from below ceiling for New Construction or Remodel applications; Precise hot aiming/locking 0-40 degrees tilt, full 361 degrees rotation, Select from Angle Cut Cone, Pinhole, or Slot trim styles options; Optional housing accessories available
Mounting:
Recessed
Optics:
Very Narrow, Narrow, Medium, Wide
Wattage:
8 - 54
Color Temperature:
2700, 3000, 3500, 4000, 5000, SpectraSync
Lumen:
1,000 - 6,000; L90 @ 50,000 hours
Colors:
SpectraSync Color Tuning, NX Lighting Controls
