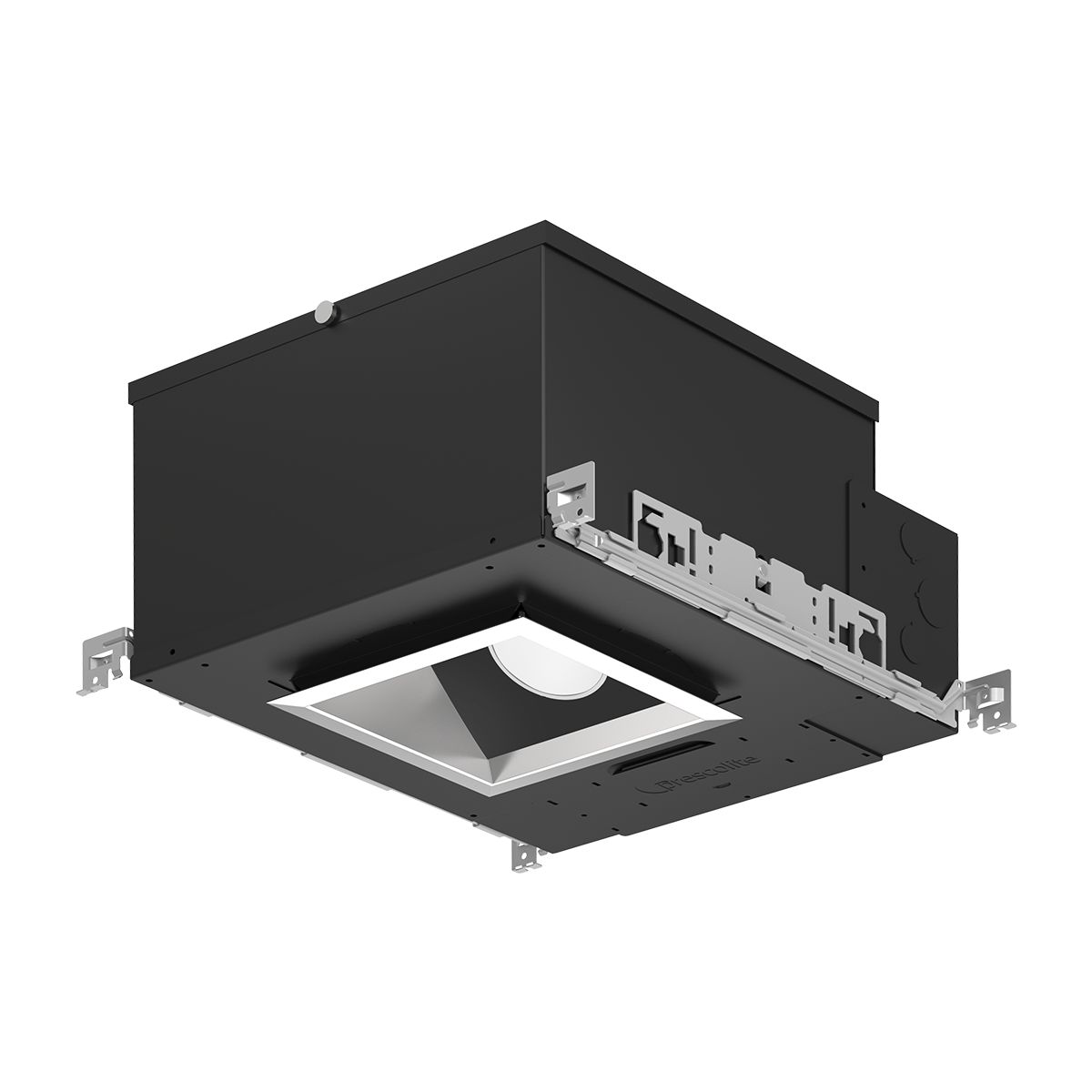

LITEISTRY™ LTR-6SQA
LITEISTRY™ offers a broad palette of architectural downlighting solutions with consistent aperture appearance, quiet ceiling design, and optical performance.
Spec Sheets
LTR 6SQA0PY.PDF
LTR 6SQA SPECTRASYNC3JI.PDF
IES Files
LTR 6SQA H 06L35K8MD DM1 LTR 6SQA T S TILTED 30 DEGMLB.IES
LTR 6SQA H 06L35K8NR DM1 LTR 6SQA T S TILTED 30 DEGFDD.IES
LTR 6SQA H 06L35K8WD DM1 LTR 6SQA T S TILTED 30 DEG5G9.IES
LTR 6SQA H 06L35K8XW DM1 LTR 6SQA T S TILTED 30 DEGASA.IES
Fixture Details
Features Benefits:
6" architectural LED square adjustable accent delivering 6003500 lm; Available with SpectraSync Tunable White and Dim-to-Warm options; NX Lighting Controls, wired and wireless capability available; Four field interchangeable beam distributions from 15 degrees to 45 degrees; Translating center beam optic allows 035 degrees vertical tilt, 362 degrees horizontal rotation; Select from three lower trim styles: Full Cut Cone, Pinhole, or Slot
Colors:
NX Lighting Controls, SpectraSync Color Tuning
Mounting:
Recessed
Optics:
Narrow, Medium, Wide, Extra Wide
Wattage:
8 - 43
Color Temperature:
2700, 3000, 3500, 4000, 5000
Lumen:
600 - 3,500; L90 @ 55,000 hours
