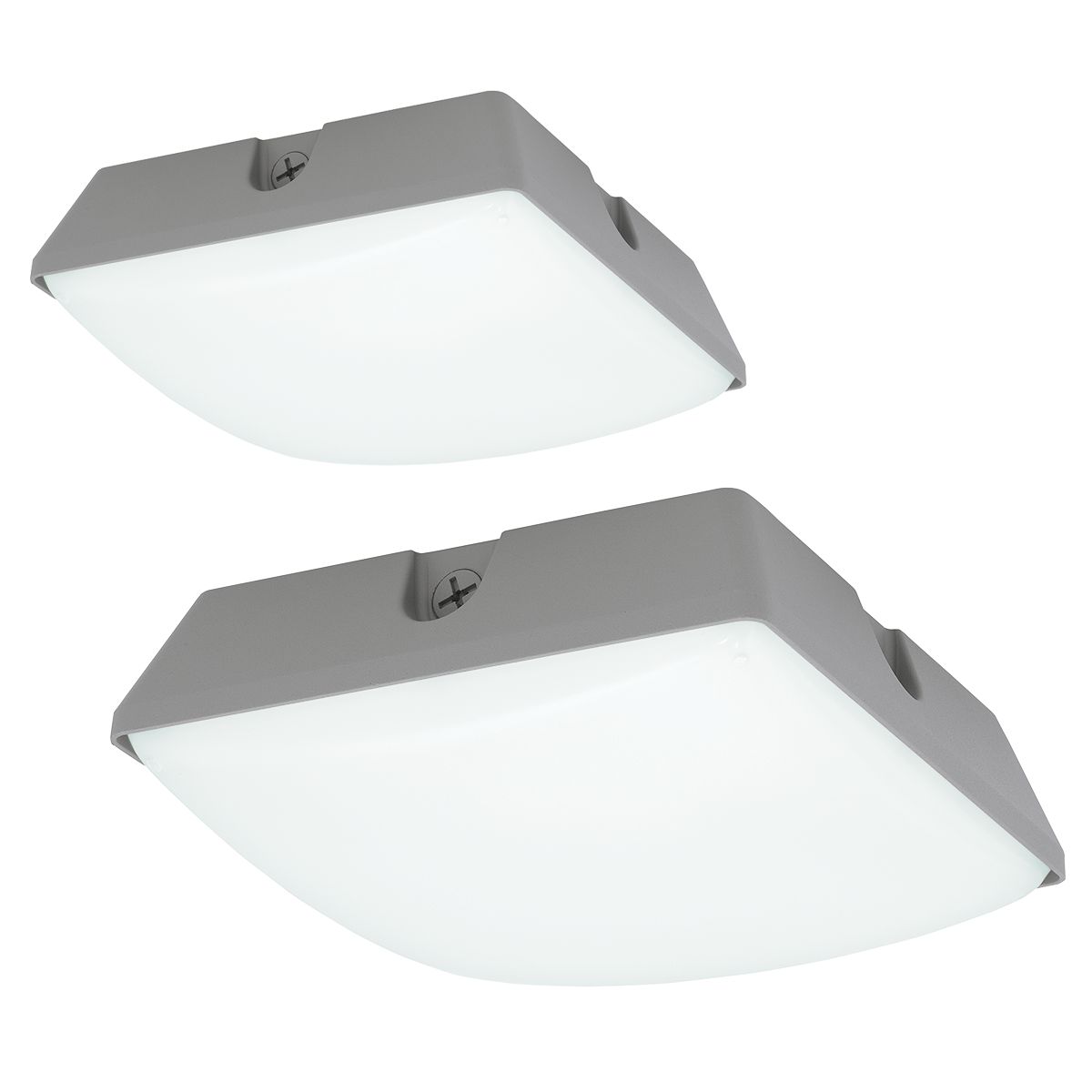

LSQ Lumasquare® Series
Lumasquare® luminaires provide a seamless blend of performance, visual comfort, controls and accessory options in an elegant/low profile form factor.
Spec Sheets
LSQ LUMASQUARE SERIESEFK.PDF
IES Files
LSQ1 25 3K8 UNV XNLA.IES
LSQ1 25 4K7 UNV XGEV.IES
LSQ1 25 5K7 UNV XRW5.IES
LSQ1 40 3K8 UNV XDCG.IES
LSQ1 40 4K7 UNV XFLZ.IES
LSQ1 40 5K7 UNV XBSR.IES
Fixture Details
Features Benefits:
Available in two sizes and four outputs up to 9,000 lumens; A specially designed acrylic lens provides ultimate glare control which softens the light for no pixilation and unprecedented visual comfort; Seamless retrofit solution for traditional HID sources up to 250W (LSQ effectively covers unsightly existing HID installation footprints); Wireless control, motion sensor, photocontrol and emergency battery back-up capability; Simple four step installation; Polycarbonate vandal shield available; 10kA surge protection standard; Available in 3000K, 4000K and 5000K nominal CCT; DLC (DesignLights Consortium) Qualified - see www.designlights.org; Five year limited warranty
Colors:
Black Matte Textured, Black Gloss Smooth, Dark Bronze Matte Textured, Dark Bronze Gloss Smooth, Graphite Matte Textured, Light Grey Gloss Smooth, Platinum Silver Smooth, White Matte Textured, White Gloss Smooth, Verde Green Textured
Mounting:
Ceiling (junction box), Ceiling (surface), Ceiling (pendant)
Color Temperature:
3000, 4000, 5000
