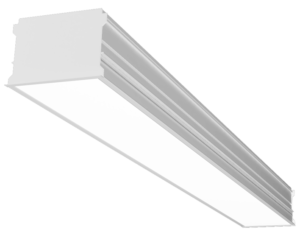

PROFILE 64
PRFL-64-D-G and PRFL-64-D-F/TRL are Day-O-Lite’s premier line of direct, extruded linear product for recessed applications in suspended grid (G) or drywall (F/TRL) ceilings. Ideal for a wide variety of commercial applications requiring highly efficient LED in a linear, direct distribution format. Compatible with Armstrong TechZone ceiling systems.
Spec Sheets
DOWNLOADYOI PHP.PDF
DOWNLOADHPN PHP.PDF
IES Files
DOWNLOADASC.PHP
Fixture Details
Ballast/Driver:
Class 2 AOC driver, 120/277V input, PF > 90{9e3039899d79502081f46b8e4e5bb4c1203e4f797aa4aa736b81ec07a8dfd77b}, THD < 20 @ 120V. 0-10V dimming to 1{9e3039899d79502081f46b8e4e5bb4c1203e4f797aa4aa736b81ec07a8dfd77b}. -20C to +50C operating range. Field replaceable.
Lamp:
LEDLED modules in 80/90 CRI @ 3 SDCM, minimum L70= 50,000 hours. Zhaga complaint, field replaceable.
Optics:
LED optimized Satin Ice (SI) snap-in acrylic lens for maximum efficiency.
