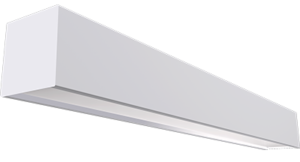

PTPL-66 Series Surface
PTPL-66-D is Day-O-Lite’s steel linear product line for commercial surface mount applications. A 6″ x 6″ profile is ideal for virtually all applications and can be easily modified if required. Individuals to 8′ and continuously illuminated rows may be specified.
Spec Sheets
DOWNLOADNAG PHP.PDF
IES Files
DOWNLOADYXZ.PHP
Fixture Details
Ballast/Driver:
Class 2 AOC driver, 120/277V input, PF > 90{9e3039899d79502081f46b8e4e5bb4c1203e4f797aa4aa736b81ec07a8dfd77b}, THD < 20 @ 120V. 0-10V dimming to 1{9e3039899d79502081f46b8e4e5bb4c1203e4f797aa4aa736b81ec07a8dfd77b}. -20C to +50C operating range. Field replaceable.
Lamp:
LEDLED modules in 80/90 CRI @ 3 SDCM, minimum L70= 50,000 hours. Zhaga complaint, field replaceable.
Optics:
LED optimized Satin Ice (SI) lay-in lens for maximum efficiency.
