SDL
The SDL provides you the ability to build your perfect display fixture combining multiple module types onto either a U or V profile track. Both tracks are provided in set or custom lengths up to 72″. Specify 6″ modules with single or double LED heads that are either fixed or adjustable. Modules can easily be repositioned by sliding inside the channel after mounting or can simply be removed and clicked into a new location. Both the fixed and adjustable LED heads offer a 30° beam spread. Blanks are available for covering the wireway. Each module comes with snap-in quick-connects for easy installation, reposition and substitution. Standard in Black finish. Custom finishes available.
Fixture Details
Color Temperature:
2700K, 3000K, 3500K, 4000K, 5000K
Fixture Length:

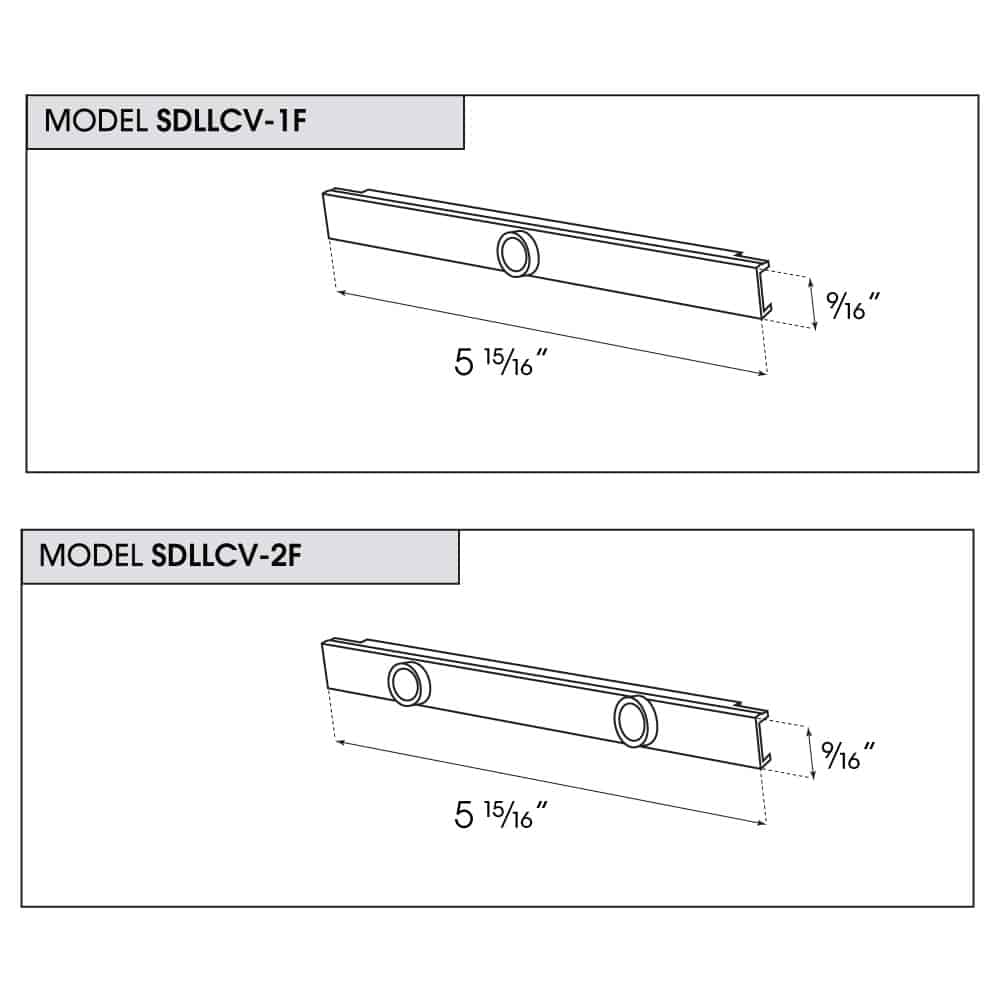

9/16" H x 11/16" W; 3/4" H x 3/4" W
Lamp:
1W per LED head
Lumen:
120 Lm per LED head @3000K
Voltage:
24V DC
