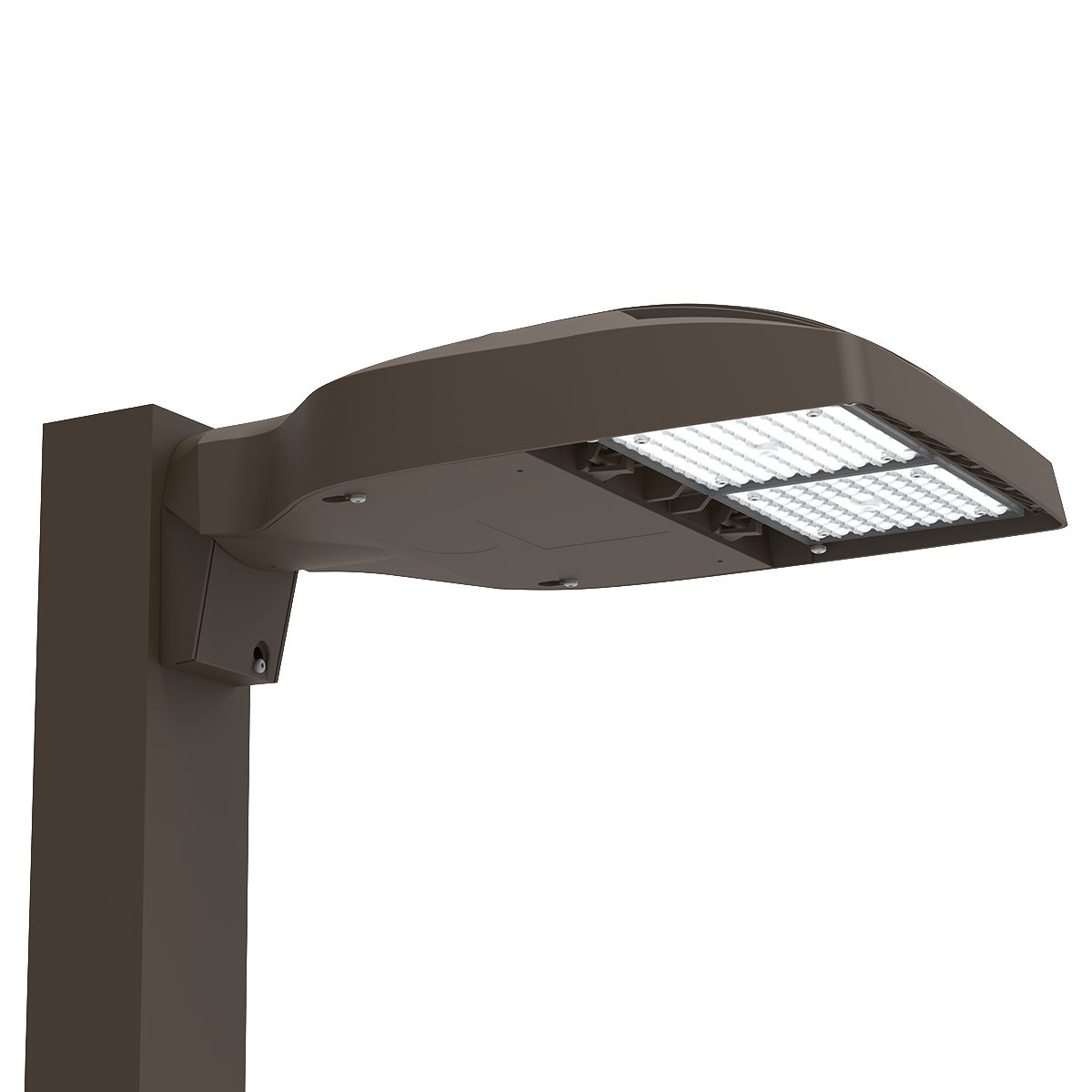

Sling Area tradeSELECT
The Sling Area TradeSelect,with a compact sleek design offers four stock configurations which include a universal mounting block for easy pole installation.
Spec Sheets
SLING TRADESELECT SPECT65.PDF
IES Files
ASL1 100 3 ASQUYLW.IES
ASL1 100 4W ASQUC44.IES
ASL1 135 3 ASQUSEJ.IES
ASL1 135 4W ASQUWPJ.IES
Fixture Details
Features Benefits:
Capable of replacing up to 250W-400W luminaires; Featuring Micro Strike Optics which maximizes target zone illumination with minimal losses as the house-side, reducing light trespass issues; Lens distributions are field rotatable (in 90deg increments); Backlight Controls and House Side Shields available; 4000K CCT; 3G rated for high vibration applications including bridges and overpasses
Colors:
Dark Bronze Matte Textured
Mounting:
Arm
Optics:
Type III, Type IV
Wattage:
31 - 150
Color Temperature:
3000, 4000, 5000
Lumen:
5,001 - 30,000
